Furnace Transformers (Induction and Arc Furnace)

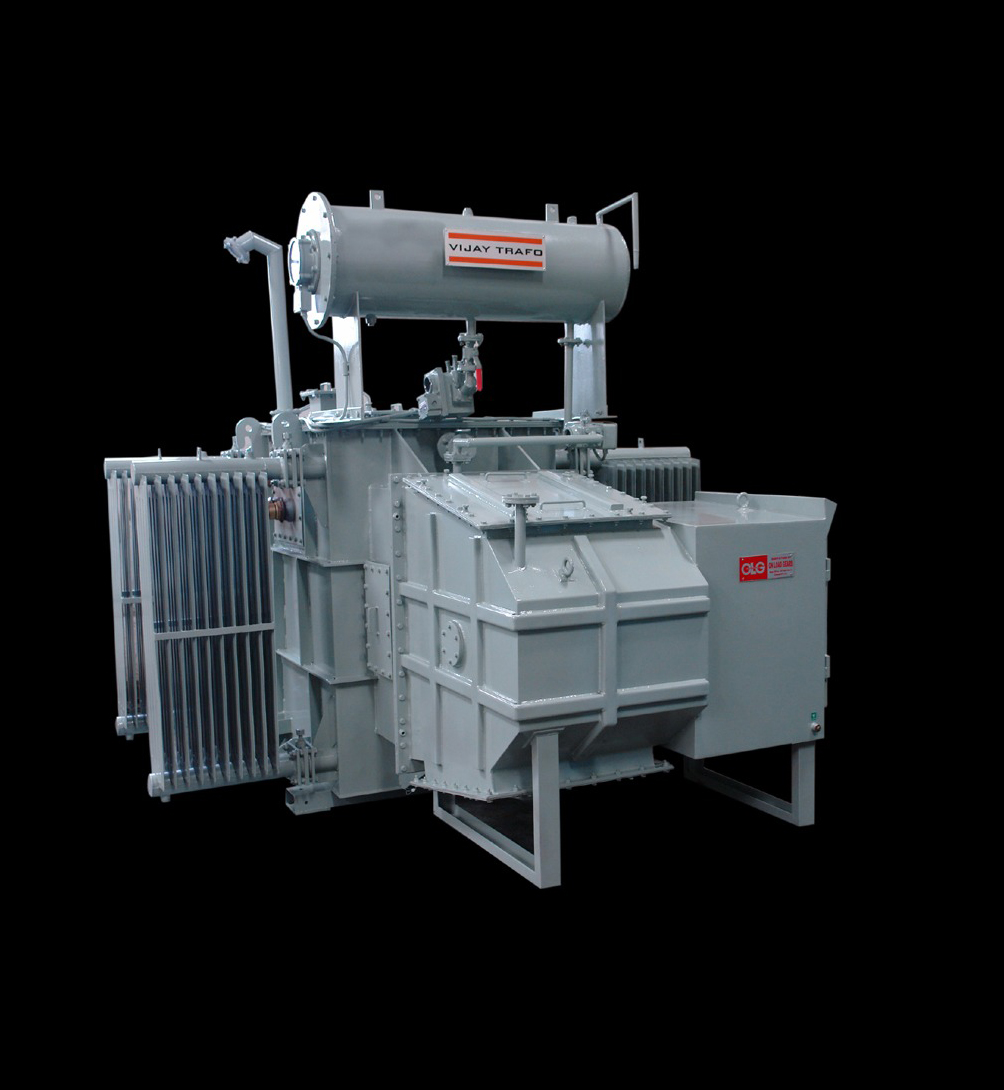

Furnace Transformers

The furnace transformer supplying power to Electric Arc Furnace has to handle extremely high currents in the order of kilo-Amps depending upon furnace ratings.

• Range

  16kVA to 5MVA

• Voltage

  33kV; 22kV; 11kV; 6.6kV; 3.3kV; 0.765kV; 0.575kV; 0.480kV; 0.433kV; 0.140kV; 0.180kV; 0.100kV

• Vector Group

  As per IS: 2026 (part 4)

• Class of insulation

  Class A

• Cooling

  ONAN

• Type

  On load tap changer/off load tap changer

• Frequency

  50 HZ

• Applicable standard

  IS: 2026/IS: 335/IS: 2066/IS: 3347 OR IEC: 60076
